- Brand: Carisol
- Model: Carisol-ASP-MD1-40 T2 2P 20-40kA 275V
- Weight: 0.52lb
- Dimensions: 2.83in x 3.44in x 3.18in
- SKU: CSE-SC-LP-MD1-40 T2 2P 20-40kA 275V
Available Options
Description

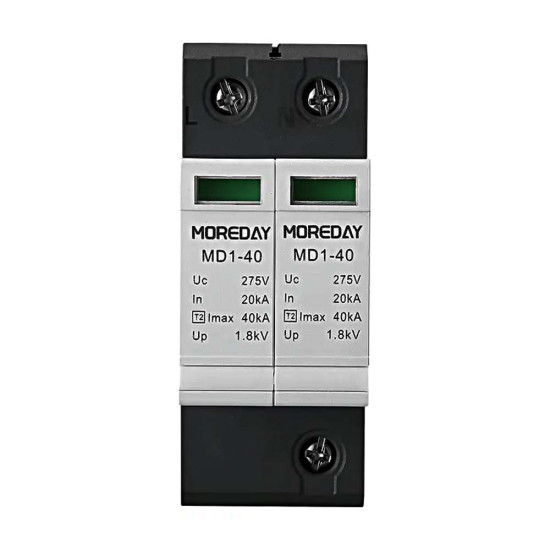

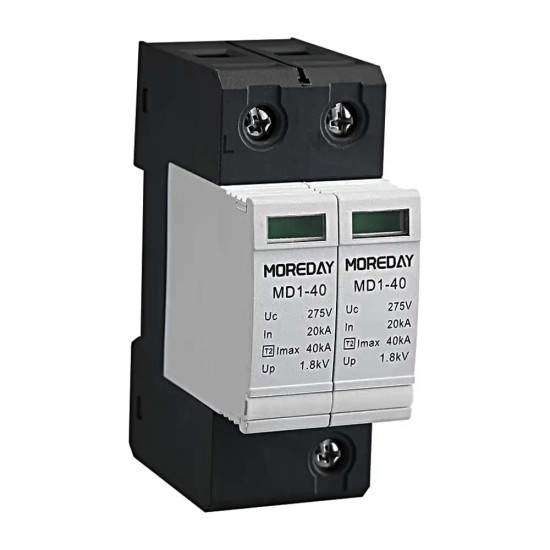

275V AC Surge Protector Carisol MD1-40 T2 2P 20-40kA 275V
Overview
The Carisol MD1-40 T2 2P AC Surge Protector is a reliable Type 2 Surge Protection Device (SPD) designed to protect electrical systems from transient overvoltage caused by lightning strikes, power fluctuations, and switching surges. With a 275V AC operating voltage and 20-40kA surge discharge capacity, it provides effective protection for residential, commercial, and industrial electrical installations. This compact DIN rail-mounted device helps safeguard sensitive equipment and improve overall electrical system reliability.
Features
- Rated operating voltage of 275V AC.
- Type 2 (T2) surge protection technology.
- 2-pole (2P) configuration for AC circuits.
- 20kA nominal discharge current capacity.
- 40kA maximum discharge current capacity.
- Protects against lightning-induced and switching surges.
- Fast response time for effective surge suppression.
- DIN rail mounting design for easy installation.
- Compact and durable construction.
- Status indication for convenient monitoring.
- Suitable for distribution boards, electrical panels, and power systems.
Benefits
The Carisol MD1-40 T2 AC Surge Protector helps prevent electrical damage by safely diverting excess surge energy away from connected equipment, ensuring safer and more reliable power operation.
- Protects appliances and electrical equipment from voltage surges.
- Reduces repair and replacement costs caused by electrical damage.
- Improves the safety and stability of electrical installations.
- Helps extend the lifespan of sensitive electronic devices.
- Minimizes downtime caused by power disturbances.
- Provides dependable protection for homes, offices, and industries.
Advantages
The Carisol MD1-40 T2 2P Surge Protector combines advanced surge protection technology with durable construction to deliver dependable performance in modern electrical systems.
- Designed for reliable AC overvoltage protection.
- High surge handling capability up to 40kA.
- Quick installation with standard DIN rail mounting.
- Space-saving design for electrical distribution panels.
- Suitable for various AC power protection applications.
- Long service life with high-quality components.
- Trusted Carisol performance for electrical safety solutions.
Conclusion
The Carisol MD1-40 T2 2P 275V AC Surge Protector is an essential protection device for any electrical installation requiring reliable surge control. Its strong discharge capacity, fast response, and easy installation make it a must-buy solution for protecting valuable equipment and ensuring long-term electrical system safety.
Specifications
| General | |
| Model | Carisol-ASP-MD1-40 T2 2P 20-40kA 275V |
| Brand | Carisol |
| Country of origin | China |
| Color | White |
| Technical Details | |
| Material | Flame-retardant Thermoplastic |
| Voltage | 275V |
| Current | 20kA |
| Mount type | DIN Rail |
| Type | AC Surge Protector |
| Application | Residential electrical distribution , Commercial buildings , Industrial control panels , Power distribution board , Generator protection , UPS systems |
| Capacity | |
| Frequency Hz.) | 50/60Hz |
| Technology | Metal Oxide Varisto |
| Special Features | Residential electrical distribution , Commercial buildings , Industrial control panels , Power distribution board , Generator protection , UPS systems |
| Function | Overload & Short Circuit |
| Certification | CE, CB, RoHS |
| Number Of Poles | 2 Pole |
| Size | 275V |
| Dimensions | |
| Dimension | 2.83 x 3.44 x 3.18 |
| Warranty | |
| Warranty summary | Upto 5yrs |
