- Brand: Carisol
- Model: Carisol-FL-MDPVF-30 25 30A
- Weight: 0.02lb
- Dimensions: 0.39in x 1.49in x 0.00in
- SKU: CSE-SC-LP-MDPVF-30 25 30A
Available Options
Description

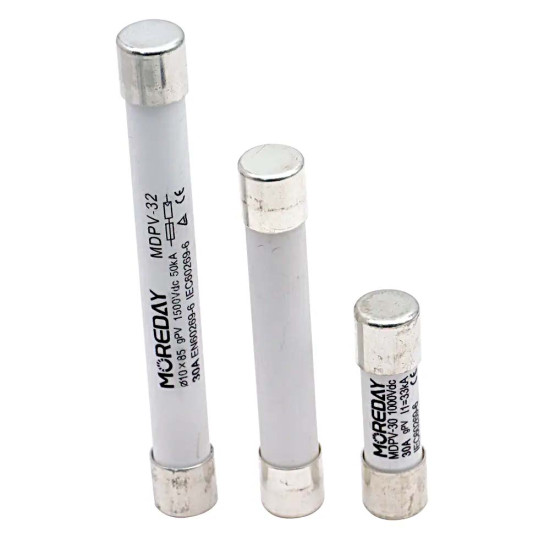

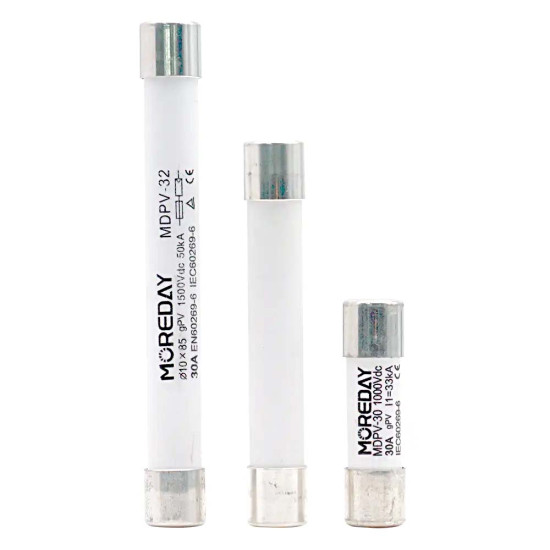

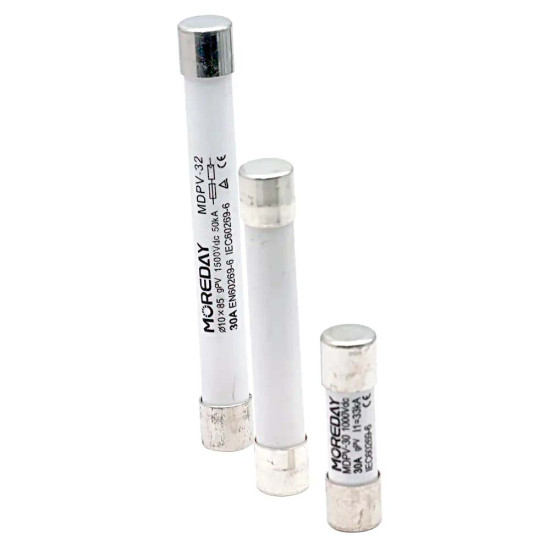

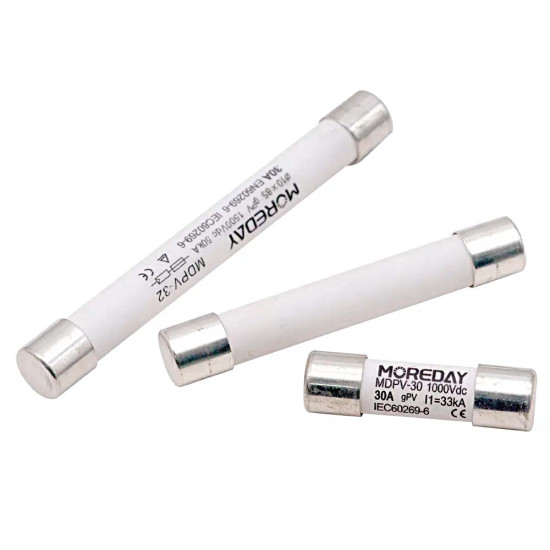

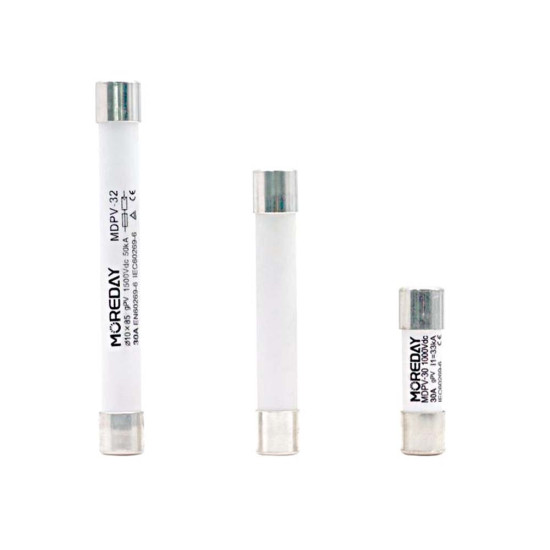

1000V Fuse Link Carisol MDPVF-30 25 30A
Overview
The Carisol MDPVF-30 1000V Fuse Link is a high-performance DC photovoltaic fuse designed to provide reliable overcurrent protection for solar PV systems. Available in 25A and 30A ratings, it safeguards solar strings, combiner boxes, inverters, battery storage systems, and other DC electrical equipment from overloads and short circuits. Engineered for fast fault interruption and dependable operation, this fuse link helps maintain the safety, efficiency, and longevity of solar power installations.
Features
- Rated operating voltage of up to 1000V DC.
- Available in 25A and 30A current ratings.
- Designed specifically for photovoltaic (PV) applications.
- Fast-acting overcurrent and short-circuit protection.
- High breaking capacity for enhanced system safety.
- Compatible with standard 10×38mm PV fuse holders.
- Low power loss for improved system efficiency.
- Durable construction for long service life.
- Reliable performance in demanding outdoor environments.
- Suitable for solar combiner boxes, PV strings, and battery systems.
Benefits
The Carisol MDPVF-30 Fuse Link provides dependable protection against electrical faults, helping to reduce equipment damage and improve the overall reliability of solar power systems.
- Protects expensive solar components from overcurrent damage.
- Enhances the safety of photovoltaic installations.
- Minimizes downtime caused by electrical faults.
- Supports stable and efficient system performance.
- Quick and easy replacement during maintenance.
- Ideal for residential, commercial, and industrial solar projects.
Advantages
Designed for modern renewable energy systems, the Carisol MDPVF-30 Fuse Link combines quality materials with dependable protection for long-lasting performance.
- Specifically engineered for high-voltage DC applications.
- Provides fast fault isolation to protect PV equipment.
- High-quality construction ensures consistent performance.
- Compatible with industry-standard PV fuse holders.
- Suitable for both new installations and system upgrades.
- Helps extend the service life of solar system components.
- Trusted Carisol quality for reliable operation.
Conclusion
The Carisol MDPVF-30 1000V Fuse Link 25A/30A is an essential safety component for any photovoltaic installation. Its fast-acting protection, high DC voltage rating, and dependable performance make it an excellent choice for safeguarding solar panels, combiner boxes, inverters, and battery storage systems. Choose Carisol for reliable DC circuit protection and long-term peace of mind.
Specifications
| General | |
| Model | Carisol-FL-MDPVF-30 25 30A |
| Brand | Carisol |
| Country of origin | China |
| Color | White |
| Technical Details | |
| Material | Silver-Plated Copper |
| Voltage | 1000V DC |
| Current | 25A, 30A |
| Mount type | DIN Rail |
| Type | Solar PV Fuse Link |
| Application | Solar PV Strings, Combiner Boxes, Battery Energy Storage Systems (ESS), Hybrid Inverters, DC Distribution Panels |
| Capacity | 10kA |
| Frequency Hz.) | DC Applications |
| Installations | |
| Technology | gPV |
| Special Features | Rated for 1000V DC photovoltaic applications , Available in 25A and 30A current ratings , 10 × 38 mm cylindrical gPV fuse link, Provides reliable overload and short-circuit protection for PV strings , High 10kA breaking capacity for enhanced safety. |
| Function | Overload Protection, Short Circuit Protection, Isolation |
| Certification | CE, RoHS |
| Size | 1000V |
| Dimensions | |
| Dimension | 0.39 x 1.49 x 0 |
| Warranty | |
| Warranty summary | Upto 5yrs |
