- Brand: Carisol
- Model: Carisol-HI-CAR-HYB12K-XP
- Weight: 99.21lb
- Dimensions: 9.35in x 18.35in x 29.76in
- SKU: CSE-SC-SI-CAR-HYB12K-XP
Available Options
Description

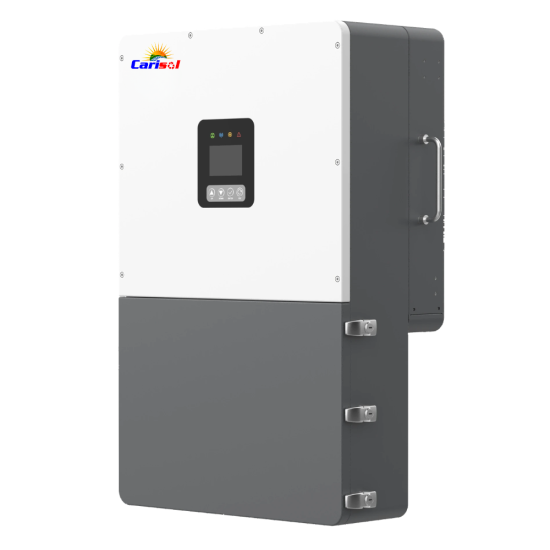

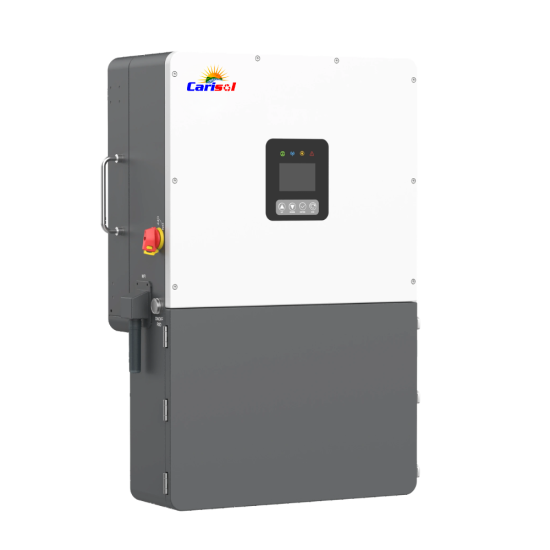

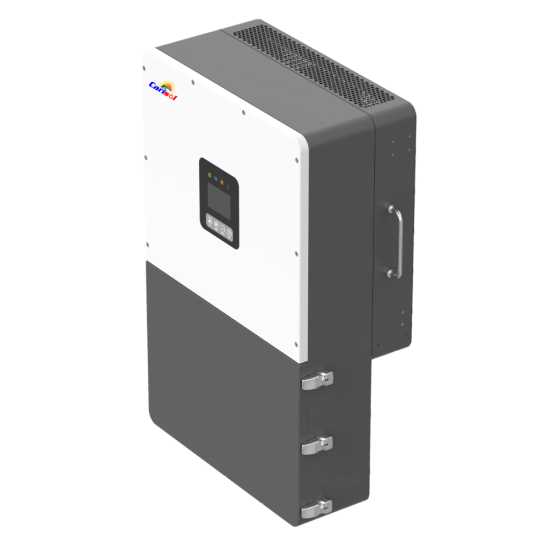

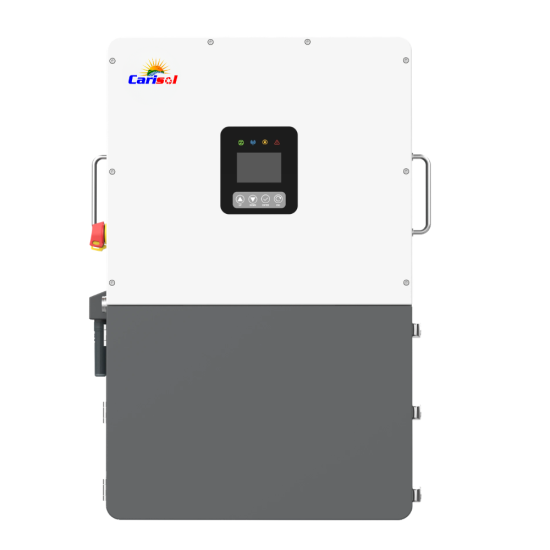

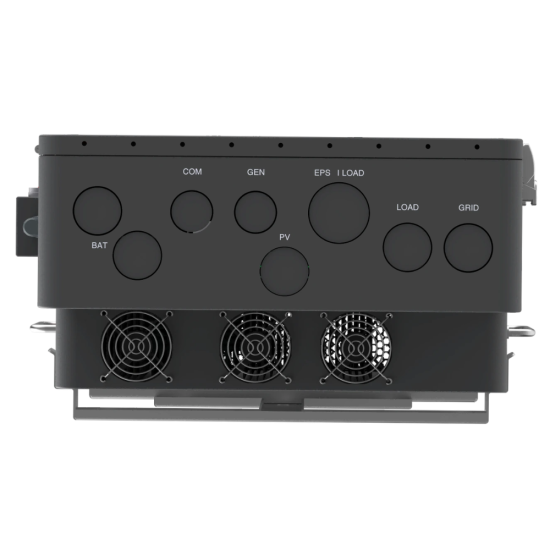

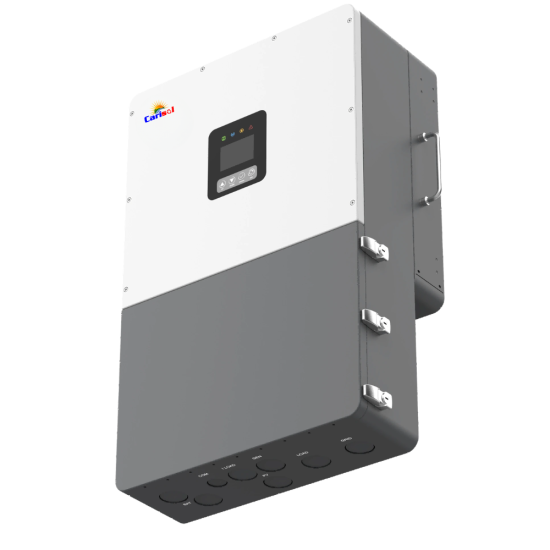

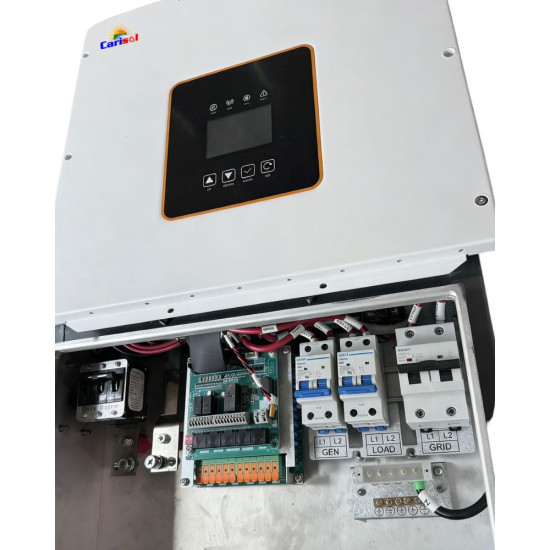

12kW Hybrid Inverter Carisol CAR-HYB12K-XP
Overview
The Carisol CAR-HYB12K-XP 12kW Hybrid Inverter is a high-performance energy solution designed to deliver reliable and efficient power for residential and commercial applications. It intelligently combines solar energy, battery storage, and grid power to ensure uninterrupted electricity supply while maximizing energy savings. Built with advanced MPPT technology, it enhances solar generation and system efficiency.
Features
- 12kW powerful output suitable for large homes and businesses
- Hybrid functionality supporting solar, battery, and grid integration
- Advanced MPPT technology for optimized solar performance
- Compatible with lithium-ion and lead-acid batteries
- Pure sine wave output for stable and clean energy
- Smart LCD display for real-time monitoring and control
- Fast UPS switching for uninterrupted power supply
- Parallel capability for system scalability
Benefits
This inverter ensures efficient energy management while providing reliable backup and cost savings.
- Reduces electricity costs through efficient solar usage
- Provides continuous power during outages
- Maximizes solar energy utilization
- Minimizes dependency on the grid
- Supports eco-friendly and sustainable energy solutions
Advantages
The Carisol CAR-HYB12K-XP stands out with its advanced design, flexibility, and dependable performance.
- High efficiency for optimal energy conversion
- Supports multiple energy sources simultaneously
- Expandable system with parallel operation
- User-friendly interface and easy installation
- Durable construction for long-term reliability
Conclusion
The Carisol CAR-HYB12K-XP 12kW Hybrid Inverter is a must-buy for those seeking a powerful, efficient, and future-ready energy solution. Its advanced features, reliable performance, and scalability make it an ideal choice for modern solar power systems.
Specifications
| General | |
| Model | Carisol-HI-CAR-HYB12K-XP |
| Brand | Carisol |
| Country of origin | China |
| Color | White |
| Technical Details | |
| Cooling System | Intelligent fan cooling. |
| Type | Grid Interactive Solar Inverter |
| Features | Over/under voltage protection , Short circuit protection , Overload protection , Temperature protection |
| Frequency Hz.) | 50Hz / 60Hz |
| Max Charging Current | 250A |
| MPPT Volltage Range | 85V – 450V |
| A/C Output | L1-N/L2-N: 110VAC+2%; L1-L2: 220VAC+2% |
| Battery voltage | 48 V |
| Communication Mode | RS485 / Wi-Fi / CAN (optional : Bluetooth) / LAN / 4G/Meter |
| Option | Hybrid Inverters |
| Battery Type Supported | AGM Batteries, Lead Acid Batteries, Lithium Batteries |
| Max PV Array Power | 12000W |
| Solar charge controller | Built-in MPPT |
| Min PV Input Voltage | 120VDC |
| Output wave | Pure sine wave |
| Power Output | 12000W |
| Charging Current | 200A – 240A |
| Inverter Technology | Split Phase / Low Voltage |
| Working Mode | Solar priority , Battery priority , Grid priority |
| Display | App + LCD + LED |
| Input Current | 110VAC/220VAC |
| Dimensions | |
| Dimension | 9.35 x 18.35 x 29.76 |
| Warranty | |
| Warranty description | Up to 5 Years |
