- Brand: Carisol
- Model: Carisol-HI-CAR-HYB15K-XP
- Weight: 99.21lb
- Dimensions: 9.35in x 18.35in x 29.76in
- SKU: CSE-SC-SI-CAR-HYB15K-XP
Available Options
Description

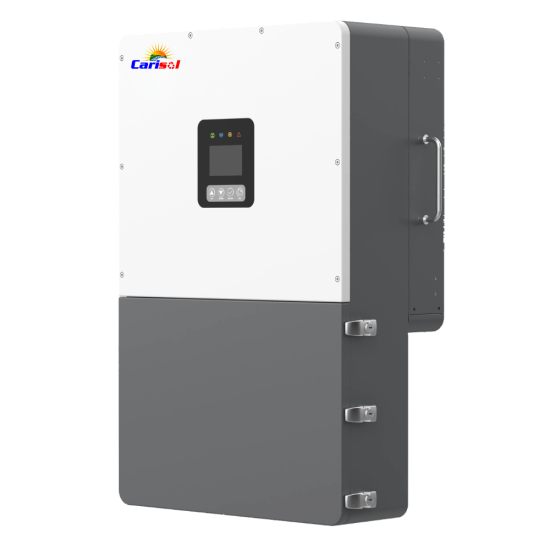

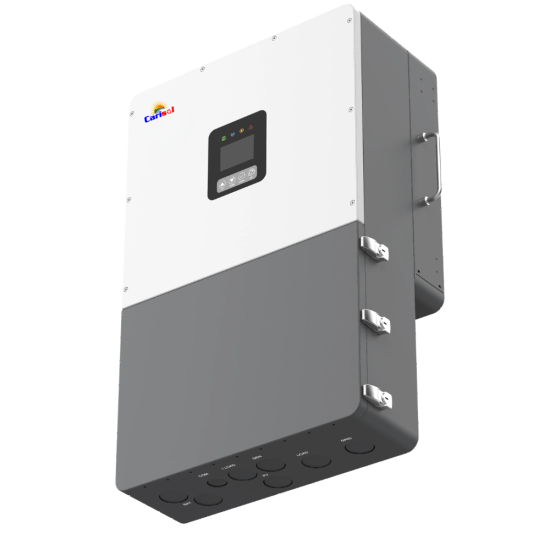

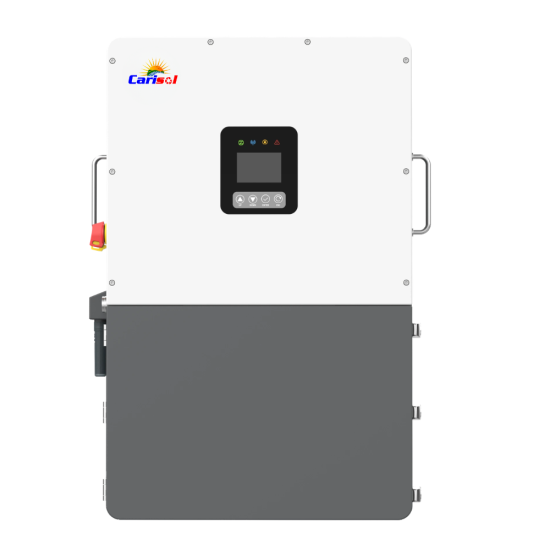

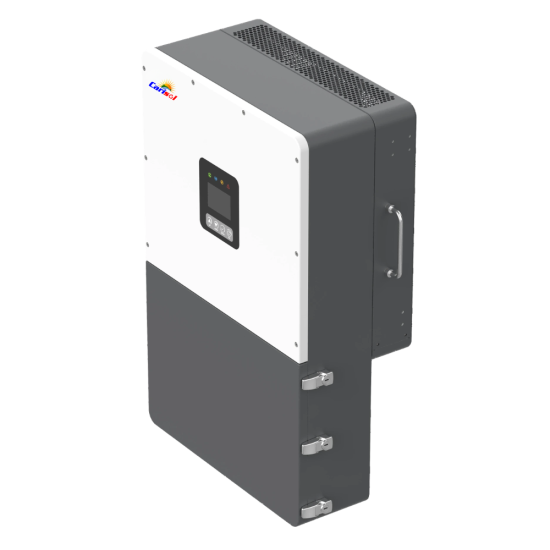

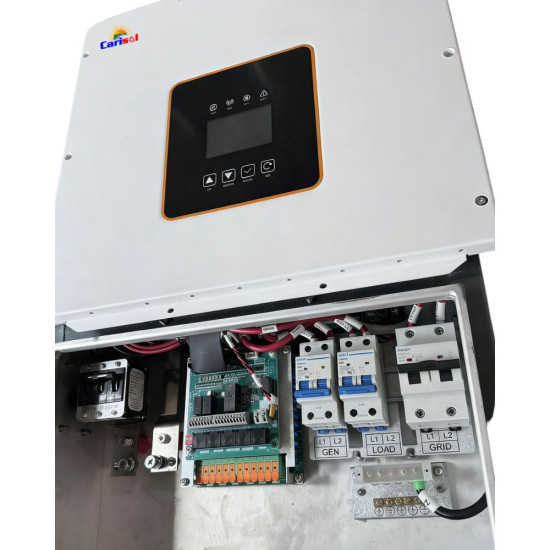

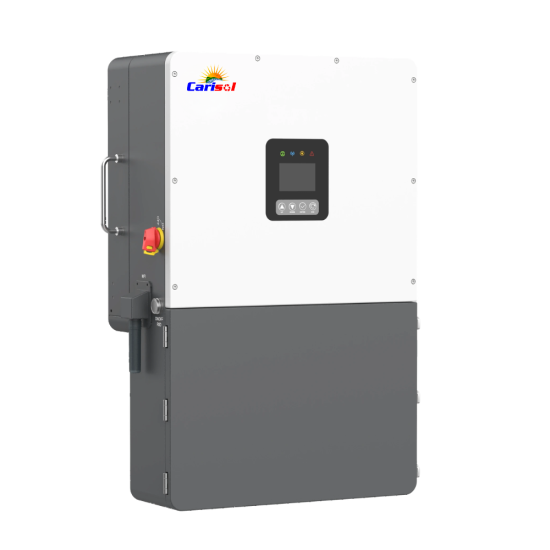

15kW Hybrid Inverter Carisol CAR-HYB15K-XP
Overview
The Carisol CAR-HYB15K-XP 15kW Hybrid Inverter is a high-capacity energy solution designed for large residential, commercial, and industrial applications. It integrates solar power, battery storage, and grid electricity to deliver uninterrupted and efficient energy management. With advanced MPPT technology and intelligent power control, it maximizes solar performance while ensuring reliable backup power.
Features
- High 15kW output capacity for heavy-duty applications
- Hybrid operation supporting solar, battery, and grid systems
- Advanced MPPT technology for maximum solar efficiency
- Compatible with lithium-ion and lead-acid batteries
- Pure sine wave output for stable and clean power
- Smart LCD display for system monitoring and control
- Fast UPS switching for uninterrupted power supply
- Parallel operation support for system expansion
Benefits
The CAR-HYB15K-XP provides reliable and cost-effective energy management for demanding power needs.
- Significantly reduces electricity costs
- Ensures continuous power during outages
- Maximizes solar energy utilization
- Reduces dependence on the utility grid
- Supports sustainable and eco-friendly energy use
Advantages
This inverter offers advanced technology and flexibility, making it ideal for high-demand energy environments.
- High efficiency energy conversion system
- Supports multiple power sources simultaneously
- Scalable design with parallel capability
- User-friendly interface for easy operation
- Robust construction for long-term durability
Conclusion
The Carisol CAR-HYB15K-XP 15kW Hybrid Inverter is a must-buy solution for users seeking powerful, reliable, and future-ready energy independence. Its high performance, advanced features, and scalability make it an excellent investment for large-scale energy systems.
Specifications
| General | |
| Model | Carisol-HI-CAR-HYB15K-XP |
| Brand | Carisol |
| Country of origin | China |
| Color | White |
| Technical Details | |
| Cooling System | Intelligent fan cooling. |
| Type | Grid Interactive Solar Inverter |
| Features | Over/under voltage protection , Short circuit protection , Overload protection , Temperature protection |
| Frequency Hz.) | 50Hz / 60Hz |
| Max Charging Current | 275A |
| MPPT Volltage Range | 120V – 450V |
| A/C Output | L1-N/L2-N: 110VAC+2%; L1-L2: 220VAC+2% |
| Battery voltage | 48 V |
| Communication Mode | RS485 / Wi-Fi / CAN (optional : Bluetooth) / LAN / 4G/Meter |
| Option | Hybrid Inverters |
| Battery Type Supported | AGM Batteries, Lead Acid Batteries, Lithium Batteries |
| Solar charge controller | Built-in MPPT |
| Min PV Input Voltage | 120VDC |
| Output wave | Pure sine wave |
| Power Output | 15000W |
| Charging Current | 200A – 300A |
| Inverter Technology | Split Phase / Low Voltage |
| Working Mode | Solar priority , Battery priority , Grid priority |
| Display | App + LCD + LED |
| Input Current | 110VAC/220VAC |
| Dimensions | |
| Dimension | 9.35 x 18.35 x 29.76 |
| Warranty | |
| Warranty description | Up to 5 Years |
