- Brand: Carisol
- Model: Carisol-SPCPB-MC4BRANCH3TO1
- Weight: 0.24lb
- Dimensions: 0.75in x 2.56in x 0.50in
- SKU: CSE-SC-SPRaC-MC4BRANCH3TO1
Available Options
Description

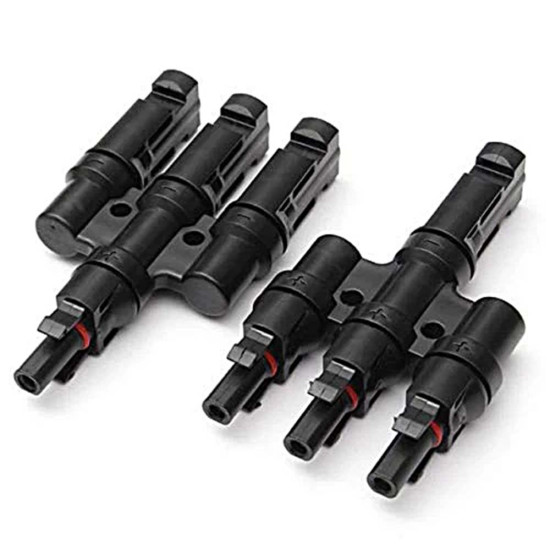

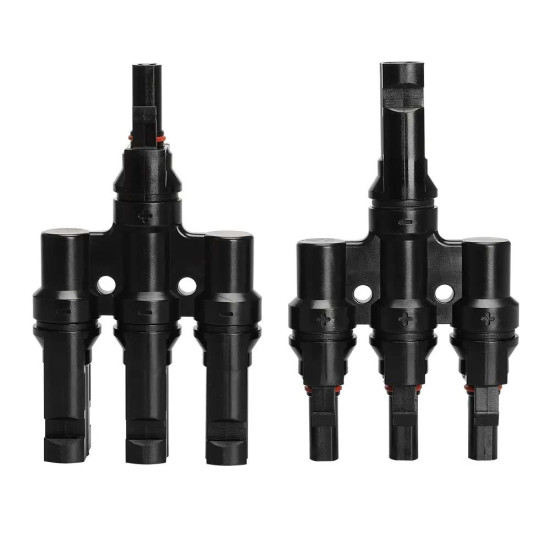

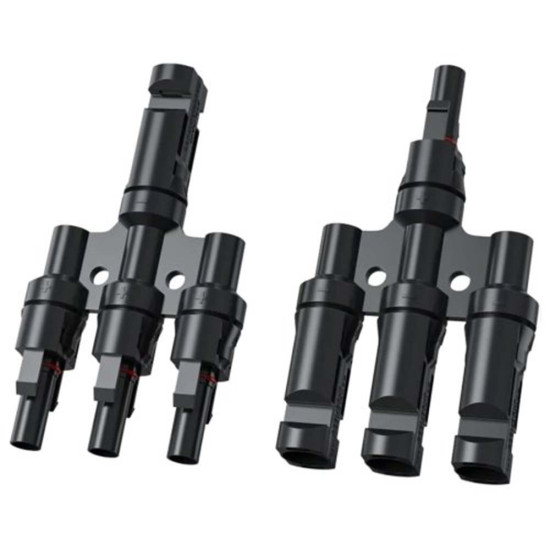

MC4 Solar Panel Connector Pair Branch – Carisol MC4BRANCH3TO1
Overview
The Carisol MC4 Solar Panel Connector Pair Branch – MC4BRANCH3TO1 is a high-quality photovoltaic branch connector designed to connect three solar panel outputs into one combined connection point. It provides a safe, efficient, and organized solution for expanding solar PV arrays and improving system wiring flexibility. Built for reliable outdoor performance, this MC4 branch connector ensures secure electrical connections, excellent durability, and efficient DC power transmission for residential, commercial, and industrial solar installations.
Features
- MC4 branch connector designed for solar PV applications.
- 3 to 1 branch connection configuration.
- Allows three solar panel connections to combine into one output.
- Compatible with standard MC4 solar connectors.
- Provides secure and stable electrical connections.
- Weather-resistant construction for outdoor installations.
- Durable design for long-term solar system performance.
- Supports efficient DC power transmission.
- Easy plug-and-play installation.
- Suitable for residential, commercial, and industrial solar systems.
- Helps maintain clean and organized PV wiring.
Benefits
The Carisol MC4BRANCH3TO1 connector provides a convenient way to expand solar panel arrays while maintaining safe and reliable electrical connections. It simplifies installation, improves system organization, and supports efficient energy transfer in renewable energy applications.
- Enables easy connection of multiple solar panels.
- Reduces wiring complexity during solar installation.
- Improves system reliability with secure connections.
- Supports efficient solar power distribution.
- Helps reduce installation time and labor costs.
- Provides dependable performance in outdoor environments.
- Ideal for solar system expansion and upgrades.
Advantages
The Carisol MC4 Solar Panel Connector Pair Branch combines durability, flexibility, and reliable electrical performance, making it an essential accessory for professional solar PV installations. Its 3-to-1 connection design provides an efficient solution for managing multiple solar panel connections.
- Professional-grade connector for solar applications.
- Strong and reliable connection performance.
- Durable construction for extended outdoor use.
- Compatible with most MC4 solar cable systems.
- Quick installation saves time during PV setup.
- Suitable for off-grid and grid-connected solar systems.
- Improves solar wiring efficiency and organization.
- Trusted Carisol quality and reliability.
Conclusion
The Carisol MC4 Solar Panel Connector Pair Branch – MC4BRANCH3TO1 is a must-have component for solar installations requiring multiple panel connections. With durable construction, easy installation, and dependable electrical performance, it provides a safe and efficient solution for expanding solar PV systems and ensuring reliable renewable energy operation.
Specifications
| General | |
| Model | Carisol-SPCPB-MC4BRANCH3TO1 |
| Brand | Carisol |
| Country of origin | China |
| Color | Black |
| Technical Details | |
| Material | Copper, tin-plated |
| Type | MC4 Branch 3 to 1 |
| Application | Solar photovoltaic (PV) systems ,Residential rooftop solar installations , Commercial solar power systems , Off-grid solar systems , Hybrid solar systems , Battery Energy Storage Systems |
| Resistance | 100N |
| Operating Voltage | DC 1000V |
| Connector | 3 Male + 1 Female and 3 Female + 1 Male |
| Special Features | Genuine MC4 male and female connector pair , Rated for 1000V DC and 30A continuous current , Compatible with 2.5 mm² to 6 mm² (14–10 AWG) solar cables , Tin-plated copper contacts for low resistance and excellent conductivity , IP67 waterproof and dustproof when mated , UV-resistant housing for long-term outdoor exposure |
| Pollution Degree | 2 |
| Dimensions | |
| Dimension | 0.75 x 2.56 x 0.5 |
| Warranty | |
| Warranty summary | Upto 5yrs |
