- Brand: Carisol
- Model: Carisol-LB-LFP48V200AH-WM
- Weight: 187.00lb
- Dimensions: 31.29in x 19.48in x 14.17in
- SKU: CSE-SC-DCB-LFP48V200AH-WM
Available Options
Description

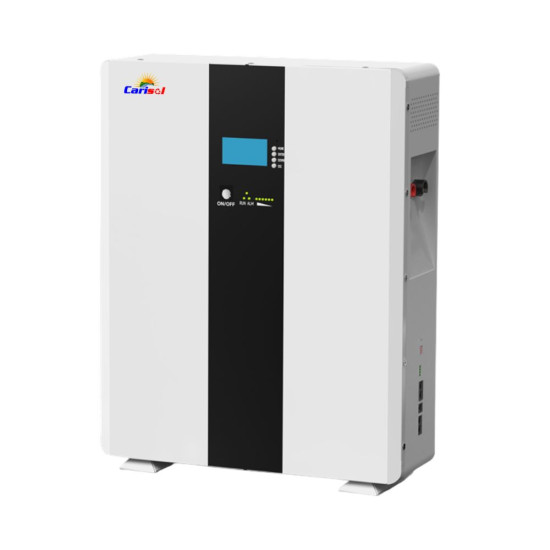

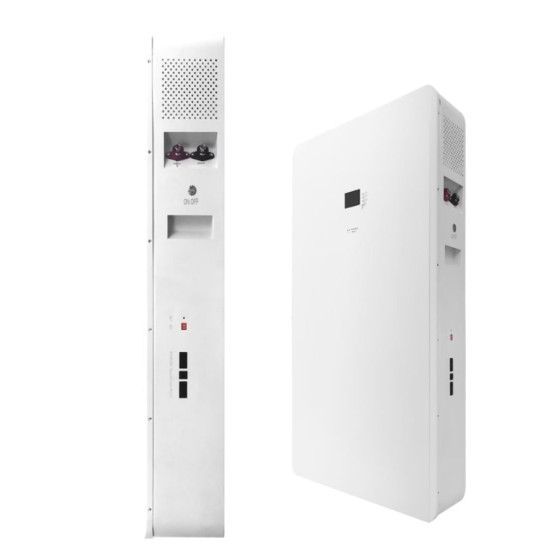

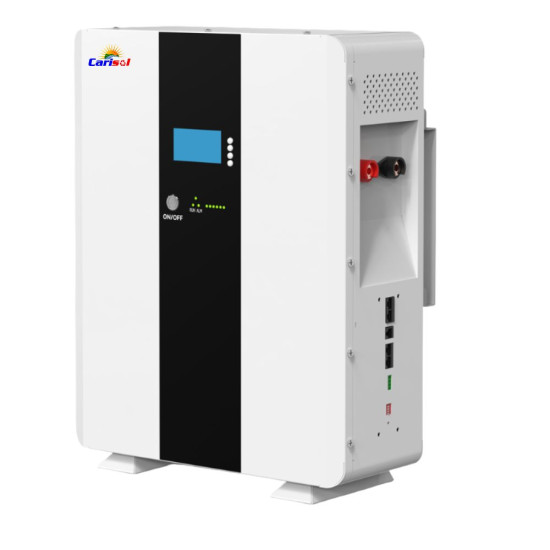

10KWH Lithium Battery Carisol LFP3.2V200AH
Overview
The Carisol 10KWH Lithium Battery LFP3.2V200AH is a high-capacity energy storage solution designed for residential, commercial, and off-grid solar applications. With stable performance, long cycle life, and integrated safety features, it ensures reliable power for backup, solar, and hybrid systems.
Features
- Nominal capacity: 10KWH (200Ah at 51.2V)
- LiFePO4 (LFP) lithium chemistry for safety and longevity
- Built-in Battery Management System (BMS) for protection
- High cycle life: ≥6000 cycles at 80% Depth of Discharge
- Wide operating temperature range
- Supports parallel connection for capacity expansion
- Low self-discharge rate
- Compact and lightweight design for easy installation
Benefits
This battery provides reliable and efficient energy storage, delivering consistent power while protecting your equipment and ensuring long-term performance.
- Stable and clean power output
- Extended battery life with high cycle count
- Safe operation with integrated BMS protection
- Expandable for larger energy storage needs
- Reduces dependence on the grid and electricity costs
Advantages
The Carisol 10KWH LFP3.2V200AH battery offers superior safety, efficiency, and durability compared to traditional lead-acid batteries, making it a reliable choice for energy storage.
- Lightweight and easy to install
- High energy density with minimal footprint
- Excellent thermal and electrical stability
- Low maintenance and environmentally friendly
- Trusted Carisol quality and engineering
Conclusion
The 10KWH Carisol LFP3.2V200AH Lithium Battery is a must-buy for anyone seeking a safe, long-lasting, and high-performance energy storage solution. Its reliability, expandability, and efficiency make it ideal for solar, backup, and off-grid power applications.
Specifications
| General | |
| Model | Carisol-LB-LFP48V200AH-WM |
| Brand | Carisol |
| Country of origin | China |
| Color | White |
| Technical Details | |
| Cooling System | Natural cooling |
| Efficiency | 98%) |
| Temperature | 0 °C to 45 °C |
| Voltage | 51.2 V DC |
| Mount type | Wall Mount |
| Type | LFP (Lithium Iron Phosphate) |
| Max Charging Current | 200A |
| Amp Hrs. | 100 A |
| Option | Lithium Batteries |
| Max. Discharging Current | 200A |
| Parallel Capacity | Up to 15–32 units |
| Certification | UN38.3 / CE / RoHS / FCC / MSDS |
| Connection Method | Lug and Bolt |
| Cycles | 6000+ cycles |
| Size | 10KWH |
| Display | LED / LCD battery status display |
| Dimensions | |
| Dimension | 28.34 x 16.53 x 6.29 |
| Warranty | |
| Warranty description | Up to 5 Years |
