In Stock





10kW Hybrid Inverter Carisol-HYB-LF-TT-10048-200AH-LU
$274,947.75
Ex Tax: $239,085.00
- Brand: Carisol
- Model: Carisol-HI-HYB-LF-TT-10048-200AH-LU
- Weight: 48.50lb
- Dimensions: 5.11in x 21.25in x 24.80in
- SKU: CSE-SC-SI-HYB-LF-TT-10048-200AH-LU
Available Options
Description

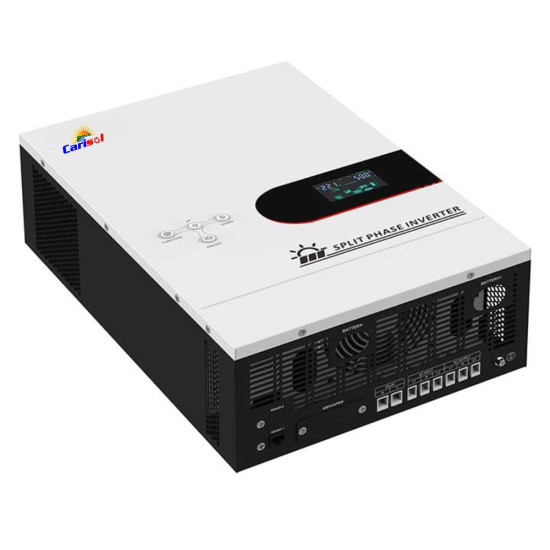

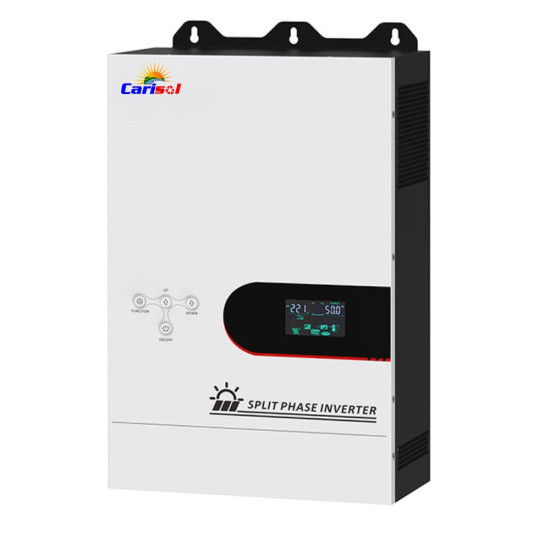

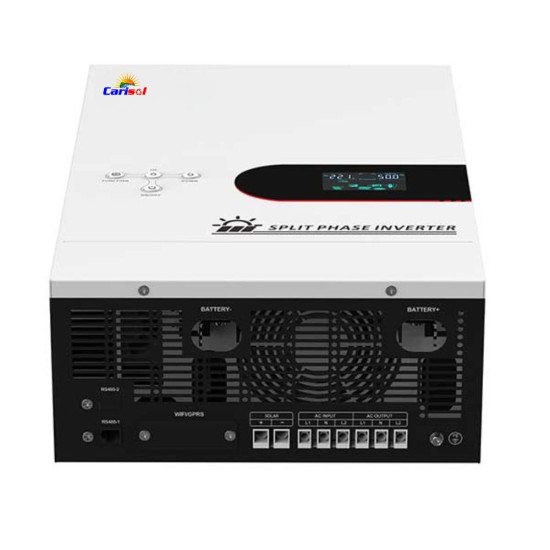

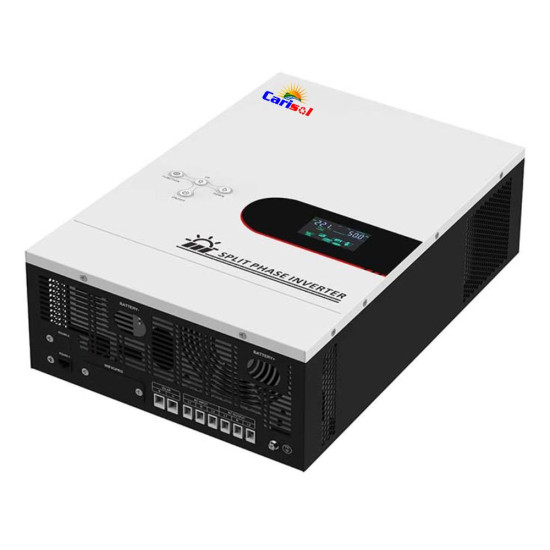

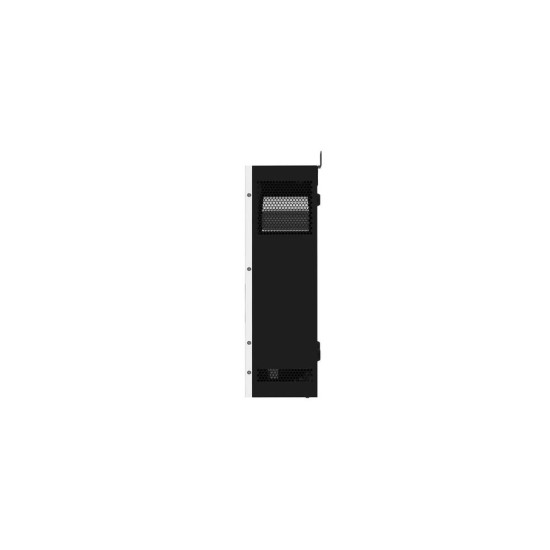

10KW Hybrid Inverter Carisol HYB-LF-TT-10048-200AH-LU
Overview
The 10KW Carisol Hybrid Inverter HYB-LF-TT-10048-200AH-LU is a powerful and advanced energy solution designed for large residential and commercial power needs. It combines high-capacity hybrid inverter technology with a built-in lithium battery system to deliver seamless energy from solar, grid, and battery sources, ensuring uninterrupted and efficient power supply.
Features
- 10KW high-capacity hybrid inverter output
- Integrated 48V 200Ah lithium battery system
- Supports solar, grid, and battery power integration
- Advanced Battery Management System (BMS)
- High efficiency energy conversion technology
- Smart monitoring and control system
- Fast charging and deep cycle capability
- Heavy-duty and durable all-in-one design
Benefits
- Provides uninterrupted power for large loads
- Reduces electricity costs significantly
- Ensures stable and reliable energy supply
- Supports sustainable and eco-friendly energy use
- Ideal for homes, offices, and commercial setups
- Long-lasting performance with lithium battery technology
Advantages
- All-in-one system reduces installation complexity
- Automatic switching between energy sources
- High durability with advanced protection systems
- Efficient performance under heavy load conditions
- Optimized energy usage with minimal loss
Conclusion
The Carisol 10KW Hybrid Inverter HYB-LF-TT-10048-200AH-LU is a premium energy solution for users requiring high power reliability and efficiency. Its advanced hybrid technology, large capacity, and cost-saving benefits make it an excellent investment for long-term energy independence.
Specifications
| General | |
| Model | Carisol-HI-HYB-LF-TT-10048-200AH-LU |
| Brand | Carisol |
| Country of origin | China |
| Color | White |
| Technical Details | |
| Cooling System | Intelligent fan cooling. |
| Type | Grid Interactive Solar Inverter |
| Features | Standard protections (short-circuit, overload, over-temp, battery under/over voltage — typical for Xindun inverters, though exact levels not documented publicly) |
| Frequency Hz.) | 50Hz / 60Hz |
| Max Charging Current | 100A |
| MPPT Volltage Range | 60V - 240Vdc |
| A/C Output | L1-N/L2-N: 110VAC+2%; L1-L2: 220VAC+2% |
| Battery voltage | 48V |
| Communication Mode | BMS Cummunication / App (WIFI / GPRS DATA COLLECTION) |
| Option | Hybrid Inverters |
| Battery Type Supported | AGM Batteries, Lead Acid Batteries, Lithium Batteries |
| Max PV Array Power | 5600W |
| Solar charge controller | Built-in MPPT |
| Min PV Input Voltage | 180VDC |
| Output wave | Pure sine wave |
| Power Output | 10000 W |
| Charging Current | 200A |
| Inverter Technology | Split Phase / Low Frequency |
| Start Motor | 7HP |
| Working Mode | Inverter priority / Mains priority / Energy saving mode |
| MPPT | 2 |
| Display | LCD + LED |
| Input Current | 110VAC/220VAC |
| Dimensions | |
| Dimension | 5.11 x 21.25 x 24.8 |
| Warranty | |
| Warranty description | Up to 5 Years |
